Cảm biến Optex BGS-2V50N
Khoảng cách bắt vật 20mm-500mm
Ứng dụng:
Standard BGS model A renewal of the BGS-V series
- Dual lens achieves long range detection
- Maximum sensing distance of 1 m
- Universal voltage type that eliminates the need to choose power supply
-

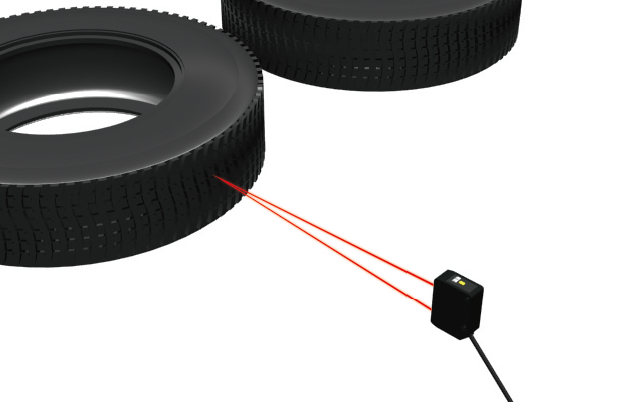

Long range detection of black workpieces
-

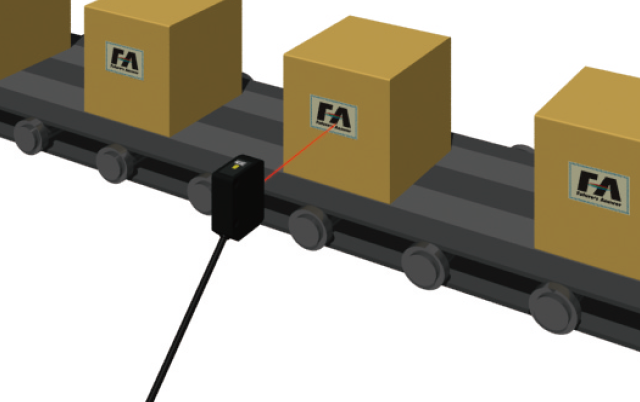

Detection of printed cardboard passage
-

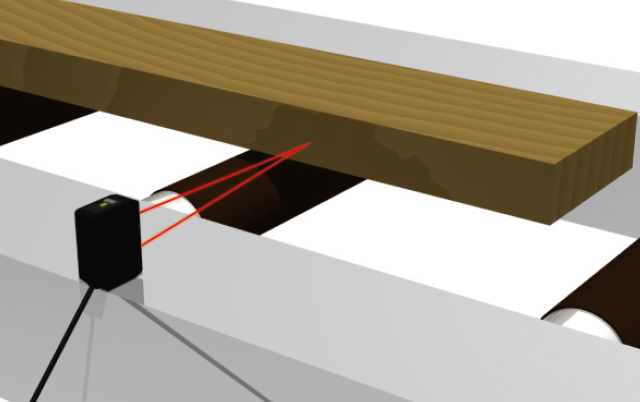

Detection of knotty or grainy lumber
-

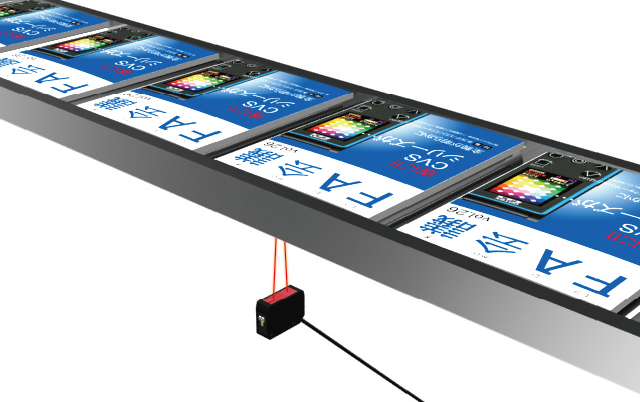

Detection of magazines passing on a rolling conveyor
Specifications
DC power type
Type Short-range Mid-range Long-range Model NPN Cable type BGS-2V30N BGS-2V50N BGS-2V100N Connector type BGS-2V30CN BGS-2V50CN BGS-2V100CN PNP Cable type BGS-2V30P BGS-2V50P BGS-2V100P Connector type BGS-2V30CP BGS-2V50CP BGS-2V100CP Sensing distance 10 to 300 mm*1 20 to 500 mm*1 20 to 1000 mm*1 Adjustable distance range 100 to 300 mm*1 150 to 500 mm*1 250 to 1000 mm*1 Light source Red LED Response time 2 ms or less 3 ms or less Hysteresis 5% or less 15% or less Distance adjustment 2-turn potentiometer Indicators Output indicator: Orange LED, Stability indicator: Green LED Control output NPN/PNP type open collector Max. 100 mA/30 VDC Output mode Light ON / Dark ON switched by wiring Connection type Cable type: Cable length: 2 m, ø3.8 mm
Connector type: M12, 4-pinInsulation resistance 20 MΩ or more (with 500 VDC) Rating Supply voltage 10 to 30 VDC Current consumption 35 mA or less Applicable regulations EMC directive (2004/108/EC) Applicable standards EN 60947-5-2 Company standards Noise resistance: Feilen Level 3 cleared Environmental
resistanceAmbient temperature/humidity -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) Ambient illuminance Sunlight: 10,000 lx Incandescent lamp: 3,000 lx Vibration resistance 10 to 55 Hz; double amplitude 1.5 mm;
2 hours in each of the X, Y, and Z directionsShock resistance Approx. 50 G (500 m/s2),
3 times in each of the X, Y, and Z directionsDegree of protection IEC standard, IP67 Material Housing: ABS (glass fiber filled, fire resistant),
Front cover: PolycarbonateWeight without cable Approx. 50 g Included accessories Mounting bracket: BEF-W250 *1. Using a 200 mm ☓ 200 mm white sheet of paper.
• Specifications are subject to change without prior notice for product improvement purposes.Universal voltage type
Type Short-range Mid-range Long-range Model Cable type BGS-2V30 BGS-2V50 BGS-2V100 Connector type – – – Sensing distance 10 to 300 mm*1 20 to 500 mm*1 20 to 1000 mm*1 Adjustable distance range 100 to 300 mm*1 150 to 500 mm*1 250 to 1000 mm*1 Light source Red LED Response time 15 ms or less Hysteresis 5% or less 20% or less Distance adjustment 2-turn potentiometer Indicators Output indicator: Orange LED, Stability indicator: Green LED Control output Relay × 1C*2 250 VAC/3 A or less,
30 VDC/2 A or less (load resistance)Output mode Fixed to Light ON Connection type Cable type: Cable length: 2 m, ø6.4 mm Insulation resistance 20 MΩ or more (with 500 VDC) Rating Supply voltage 24 to 240 VAC, 24 to 240 VDC Current consumption 2.5 VA or less Applicable regulations EMC directive (2004/108/EC), Low voltage directive (2006/95/EC) Applicable standards EN 60947-5-2 Company standards Noise resistance: Feilen Level 3 cleared Environmental
resistanceAmbient temperature/humidity -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) Ambient illuminance Sunlight: 10,000 lx Incandescent lamp: 3,000 lx Voltage resistance 2700 VAC / minute Vibration resistance 10 to 55 Hz; double amplitude 1.5 mm;
2 hours in each of the X, Y, and Z directionsShock resistance Approx. 50 G (500 m/s2),
3 times in each of the X, Y, and Z directionsDegree of protection IEC standard, IP67 Material Housing: ABS (glass fiber filled, fire resistant),
Front cover: PolycarbonateWeight without cable Approx. 50 g Included accessories Mounting bracket: BEF-W250 *1. Using a 200 mm ☓ 200 mm white sheet of paper.
*2. When driving the inductive load (with an induction valve, electromagnetic contactor, etc.) through the relay connection point, please use a noise absorption device (surge absorber).
• Specifications are subject to change without prior notice for product improvement purposes.
• Products certified for the Chinese CCC compulsory certification system also available. Please inquire for details.Để mua sản phẩm CẢM BIẾN OPTEX BGS-2V50N xin vui lòng liên hệ:
